Series 83 Sets  /  83H4CS
  • 83BH3CS
  • 843STSSCS

83H4CS

Part Number: 83H4CS
$235.66
Total Price: $235.66 (235.66/ea)
QTY:


Stock may be limited. Please call Brixon to confirm availability for all expedited order needs. A formal acknowledgement will be emailed to confirm lead time on all orders.

PRODUCT DETAILS

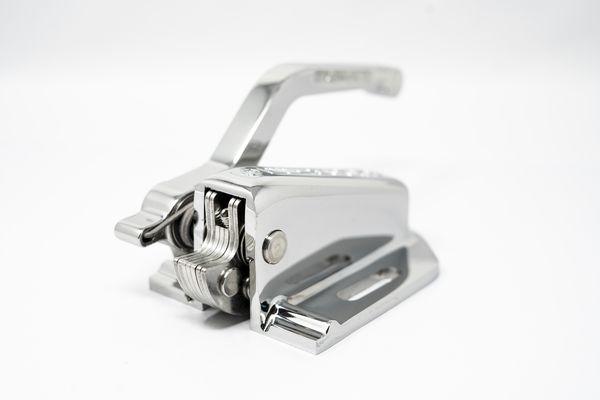

83BH3CS:

83 Cast Steel Body & Right Side Handle, Standard Finish & Stainless Steel Internals

CAD DRAWING



FEATURES

  • Corrosion resistant stainless steel internals.
  • Durable gray powder coated finish.
  • Adjustable release force 43-180 lbs.
  • Integrated handle on right side for easy opening.

SPECS

  • Casting Material 1020 Carbon Steel
  • Finish Powder Coated
  • Internal Materials Stainless Steel
  • Length (in) 5.16
  • Width (in) 3.86
  • Height (in) 3.5
  • Length (cm) 13.1
  • Width (cm) 9.8
  • Height (cm) 8.89
  • Handle Yes
  • Mounting Hole Clearance 3/8" Grade 8 Bolt
  • C1 Distance To Face Of Component (in) 1.85
  • C2 Distance To Face Of Component (in) 3.625
  • Mounting Hole Center To Center (cm) 7.29
  • C1 Distance To Face Of Component (cm) 4.7
  • C2 Distance To Face Of Component (cm) 9.21
  • Mounting Hole Center To Center (in) 2.87

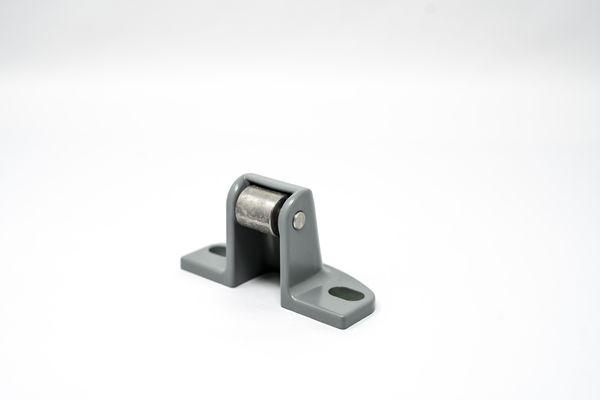

843STSSCS:

843 Cast Steel Strike, Standard Finish & Stainless Steel Internals

CAD DRAWING



FEATURES

  • Corrosion resistant stainless steel internals.
  • Durable gray powder coated finish.
  • Regular 843 strike for door offsets of 0 - .197".

SPECS

  • Casting Material 1020 Carbon Steel
  • Finish Powder Coated
  • Internal Materials Stainless Steel
  • Length (in) 1.65
  • Width (in) 3.86
  • Height (in) 2.05
  • Length (cm) 4.2
  • Width (cm) 9.8
  • Height (cm) 5.2
TECHNICAL DOCS
