Series 3 Iron Sets  /  3HAS4CI
  • 3BH3CI
  • 43ASSSCI

3HAS4CI

Part Number: 3HAS4CI
$292.94
Total Price: $292.94 (292.94/ea)
QTY:


Stock may be limited. Please call Brixon to confirm availability for all expedited order needs. A formal acknowledgement will be emailed to confirm lead time on all orders.

PRODUCT DETAILS

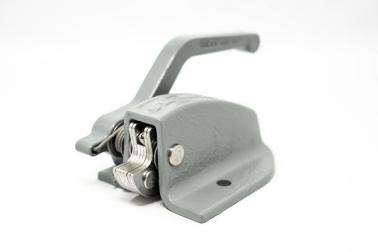

3BH3CI:

3 Cast Iron Body & Right Side Handle, Standard Finish & Stainless Steel Internals

CAD DRAWING



FEATURES

  • Durable gray powder coated finish.
  • Corrosion resistant stainless steel internals.
  • Adjustable release force 43-180 lbs.
  • Integrated handle on right side for easy opening.

SPECS

  • Casting Material Grey Iron Class 30 & 1020 Carbon Steel
  • Finish Powder Coated
  • Internal Materials Stainless Steel
  • Length (in) 5.125
  • Width (in) 3.875
  • Height (in) 3.25
  • Length (cm) 13.02
  • Width (cm) 9.84
  • Height (cm) 8.26
  • Handle Yes
  • Mounting Hole Clearance 3/8" Grade 8 Bolt
  • C1 Distance To Face Of Component (in) 1.875
  • Mounting Hole Center To Center (cm) 6.67
  • C1 Distance To Face Of Component (cm) 4.76
  • Mounting Hole Center To Center (in) 2.625

43ASSSCI:

43 Cast Iron Adjustable Strike, Standard Finish & Stainless Steel Internals

CAD DRAWING



FEATURES

  • Three roller positions for offset mounting.
  • Corrosion resistant stainless steel internals.
  • Durable gray powder coated finish.
  • Adjustable #43 strike bottom position for door offsets of .151"-.305".
  • Adjustable #43 strike middle position for door offsets of .306"-.680".
  • Adjustable #43 strike top position for door offsets of .839"-1.05".

SPECS

  • Casting Material Ductile Iron 65-45-12
  • Finish Powder Coated
  • Internal Materials Stainless Steel
  • Length (in) 1.5625
  • Width (in) 3.875
  • Height (in) 3.1875
  • Length (cm) 3.97
  • Width (cm) 9.84
  • Height (cm) 8.1
TECHNICAL DOCS
